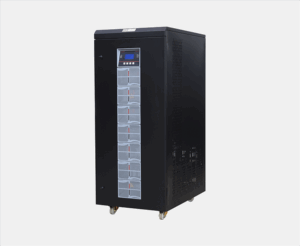

ATLAS 5000 100-800 kVA Online UPS
TECHNICIAL SPECIFICATIONS
- 0.9 Output Power Factor
- IGBT Rectifier and Inverter
- Input Current Harmonic < %5
- Regenerative Operating
- Re-adjustable Battery Charge Current
- Built-in Self-Test
- Silent Performance
- Up to 6 Unit Parallel Operation
- DSP Controlled
- Up to 0.99 Input Power Factor Correction
- Static Bypass at UPS Overload or UPS Failure
- Advanced LCD Panel
- Up to 500 Event History
- High Performance for Medical Instruments
- Parallel Operating without Communication
- CE Certificate
- Patented Technology
PRODUCT INTRODUCTION
The ATLAS 5000 Series are 3-phase in/3-phase out 10-800 kVA true online, transformer-less, double conversion UPS systems with an IGBT rectifier providing high input power factor and low input current THD. They produce microprocessor-controlled pure sine wave output to critical loads. Industrial manufacturing machines, hospital and monitoring equipment,
Heavy medical communication and laboratory equipment, etc., are the main fields of use with proven reliable high technology.
DATASHEET ATLAS 5000 100-800kVA Online UPS
